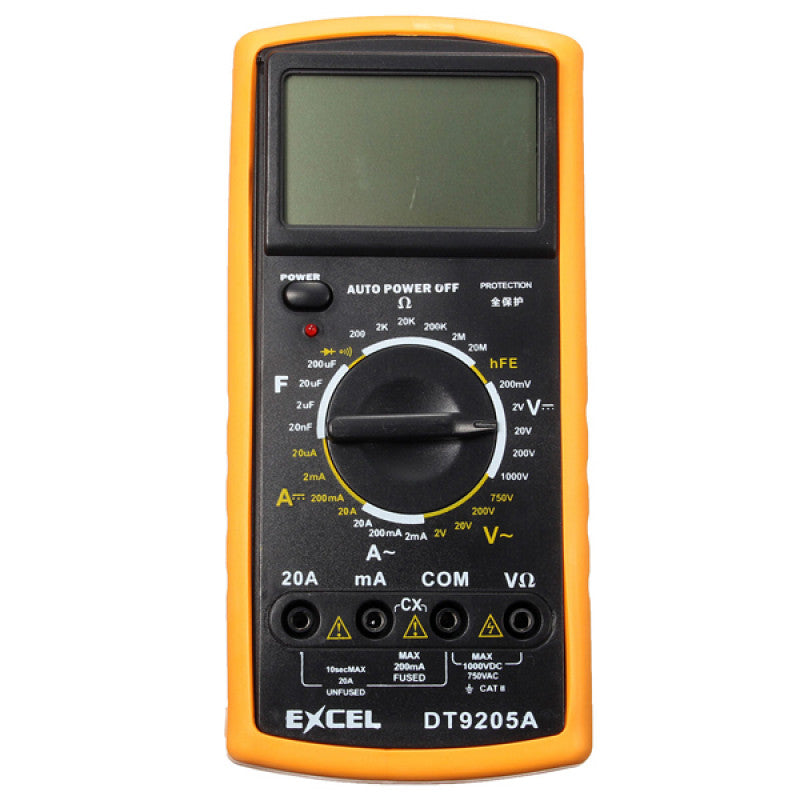

Multimetru digital cu carcasa antisoc

Multimetru digital profesional

Multimetrul masoara:

• Curent continuu (voltajul si amperajul),
• - Curent alternativ (voltajul si amperajul),
• - Rezistenta,
• - Masurare condensatori,
• - Masurare dioda
• ,- Tranzistori. Voltaj curent continuu:- Trepte - 200mV, 2V, 20V, 200V, 1000 V,- Rezolutie - 0.1 mV, 1 mV, 10 mV, 100 mV, 1V,- Precizie - 0.5% + 1cifra, 0.8% + 2cifre. Voltaj curent alternativ:- Trepte - 200mV, 2V, 20V, 200V, 200mV, 750V,- Rezolutie - 0.1 mV, 1 mV, 10 mV, 100 mV, 0.1 mV, 1V,- Precizie - 0,8% + 3 cifre, 1,2% + 3 cifre. Amperaj CC & AC :- Trepte - 2mA, 20mA, 200mA, 20 A,- Rezolutie - 1 µA, 10 µA, 0.1 mA, 0.01 A,- Precizie - 1% + 1 cifra, 2% + 5 cifre. Rezistenta :- Trepte - 200, 2k, 20k, 200k, 2M Ohm, 20M, 200M Ohm,- Rezolutie - 0.1, 1, 10, 100, 1k Ohm, 10 k, 100 kOhm,- Precizie - 0.8% + 2 cifre, 1.5% + 2 cifre.
• Capacitate:- Trepte - 2nF, 20nF, 200nf, 2µF, 20µF, 200uF,- Rezolutie - 1pF, 10pF, 100pF, 1nF, 10nF, 100nF,- Precizie - 2.5% + 5 cifre,- Test Dioda - hfe Transistor - Test Volt 2.8V max,
• - Test Continuu - Less than 30 +/- 10 Ohm.                                                 Specificatii:
• - Temperatura optima de lucru: +0 - +40 grade C,
• - Greutate: circa 310g (batteria inclusa),
• - Dimensiuni: 191mm(L) x 89mm(W) x 35mm (H).
• - Gradul de acuratete:- DC Voltage 200mV-1000V (0.5%+1dgt),- AC Voltage 200mV-750V (0.8%+3dgt),- DC Current 2mA-20A (0.5%+1dgt),
• - AC Current 2mA-20A (1.0%+3dgt),
• - Resistanta 200-200M (0.8%+1dgt).
• - Capacitate 2nF-20 grade F (2.5%+3dgt).                                                     Functioneaza cu o baterie 9V neinclusa in pachet.
